Product Detail

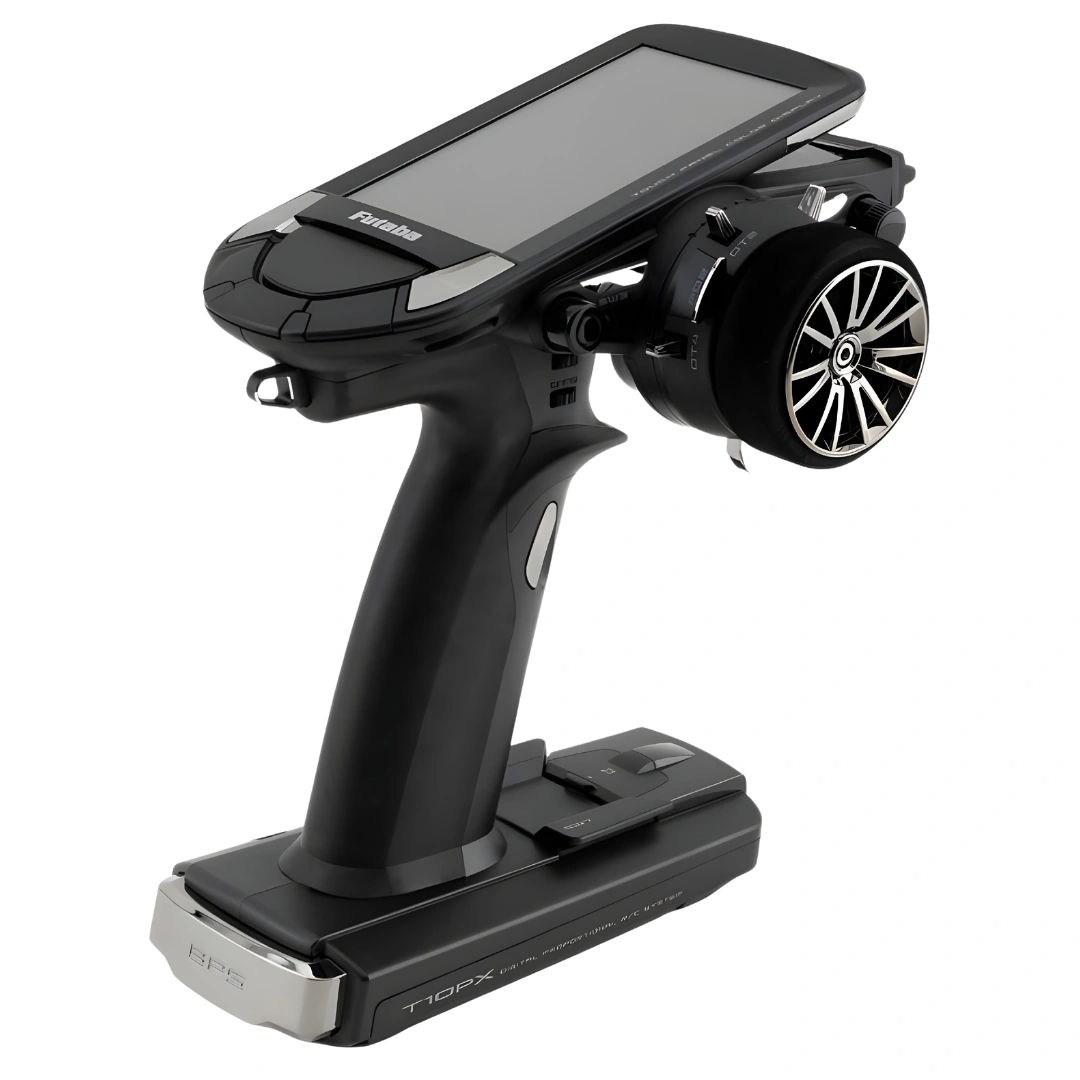

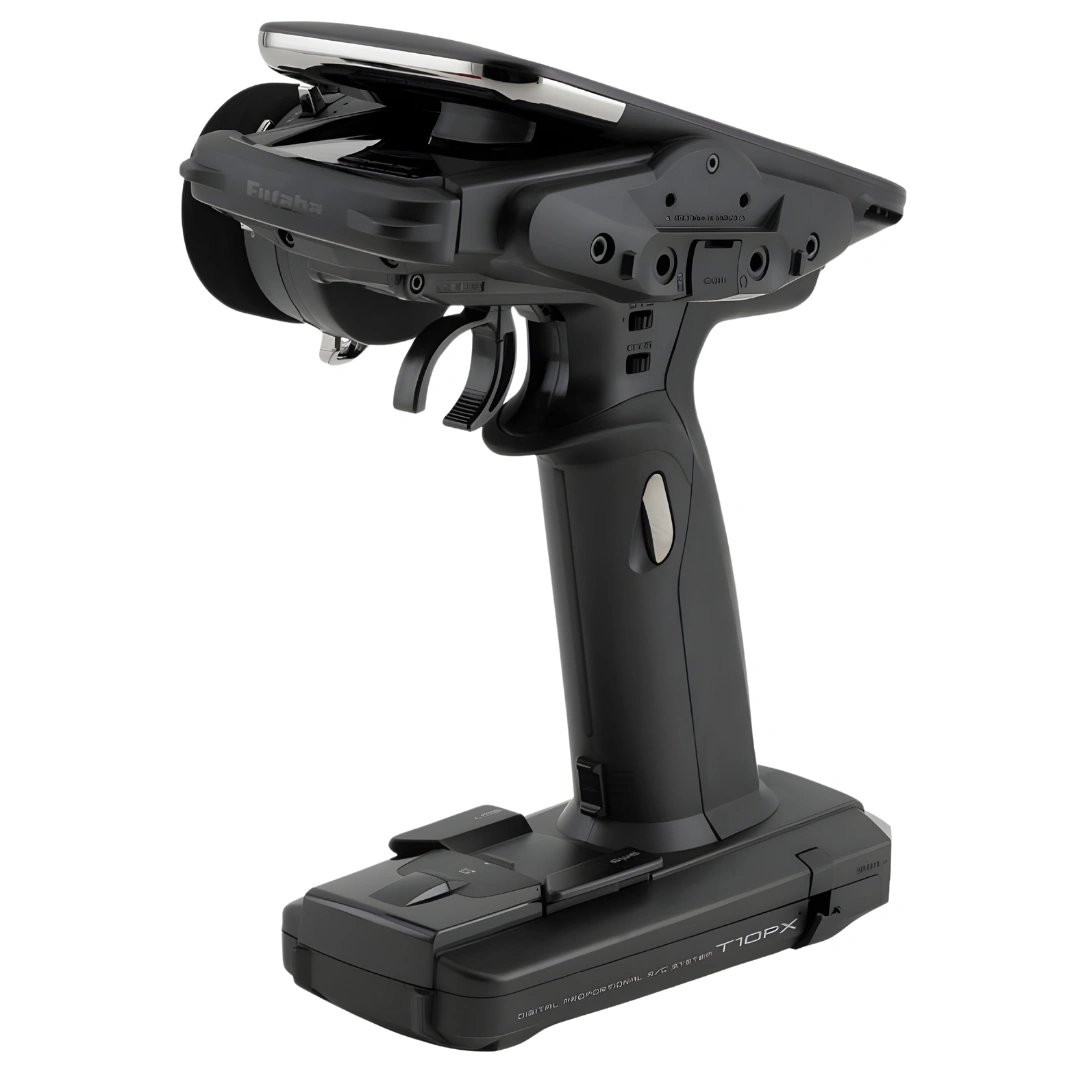

Introducing the Futaba 10PX, your ultimate remote control transmitter for precision and performance. At its heart lies a remarkable full-colour touch screen LCD, boasting a generous 4.3-inch size that's perfect for both indoor and outdoor use. With trans reflective technology, it ensures crystal-clear visibility in any lighting condition.

Beyond the stunning display, the Futaba 10PX packs a punch with 10 channels, powered by the lightning-fast F-4G system, providing telemetry with unrivalled responsiveness. Need even more flexibility? The S.BUS2 system allows you to operate up to 10 channels simultaneously. Plus, you can customize your experience by utilizing the T-FHSS MINIZ system, giving you the power to tailor your setup with the Kyosho Mini-Z Evo dedicated receiver.

In addition to these cutting-edge features, the 10PX offers a wealth of functionality, from brake and steering mixing for large cars to 4WS mixing for crawlers and even gyro sensitivity adjustments. With its LiPo battery compatibility, firmware updates via microSD card, and versatile button configuration, this transmitter empowers you to take control like never before. Elevate your RC experience with the 10PX – it's the ultimate tool for true enthusiasts.

Features

• Full colour touch screen LCD
• F-4G system & telemetry
• Up to 10 channels can be operated by using the S.BUS2 system
• By setting to the MINIZ system in the receiver setting menu, you can use Kyosho Mini – Z Evo dedicated receiver RA-42 (Sold Separately)
• Software can be updated via microSD card (Sold Separately)
• 40 model memory with allowance for 15 character names
• Allows for the use of an optional LiPo
• Brake mixing for large cars
• Steering mixing is independent allowing for precise left and right steering servo settings
• 4WS mixing for crawlers
• Dual ESCs mixing allows for two ESCs to be controlled independently
• The sensitivity of Futaba car gyros can be adjusted from the T10PX
• Tank mixing
• CPS LED light mixing
• Futaba S.BUS servo allows setting of the parameters of select Futaba S.BUS servo

10PX Contents

• T10PX Transmitter
• R404SBS OR R404SBS-E Receiver
• Dry Battery Holder
• Wheel offset adapter two size (APA)APA Mounting screws *Spare screws are also included
• Wheel adapter 32 deg.
• Wheel Angle spacer 5 deg.
• Large diameter steering wheel
• Trigger guard (Lx1/Rx1)
• Grip rubber x1
• Blind paddle x2
• Hex wrench
• Short manual

Specifications

Transmitter

• Frequency: 2.4GHz @ 100mW

Protocols

• T-FHSS-SR
• T-FHSS
• S-FHSS
• F-4G

Voltages

• LiPo: 7.4V
• LiFe: 6.6V
• Current Drain: 350mA or Less*
• Antenna Type: 1/2 Dipole

Receiver

• Voltage: 3.7-7.4V DC
• Dimensions: 1.00x0.81x0.42in (25.5x20.7x10.6mm)
• Weight: 7.2g (0.25oz)
