Product Detail

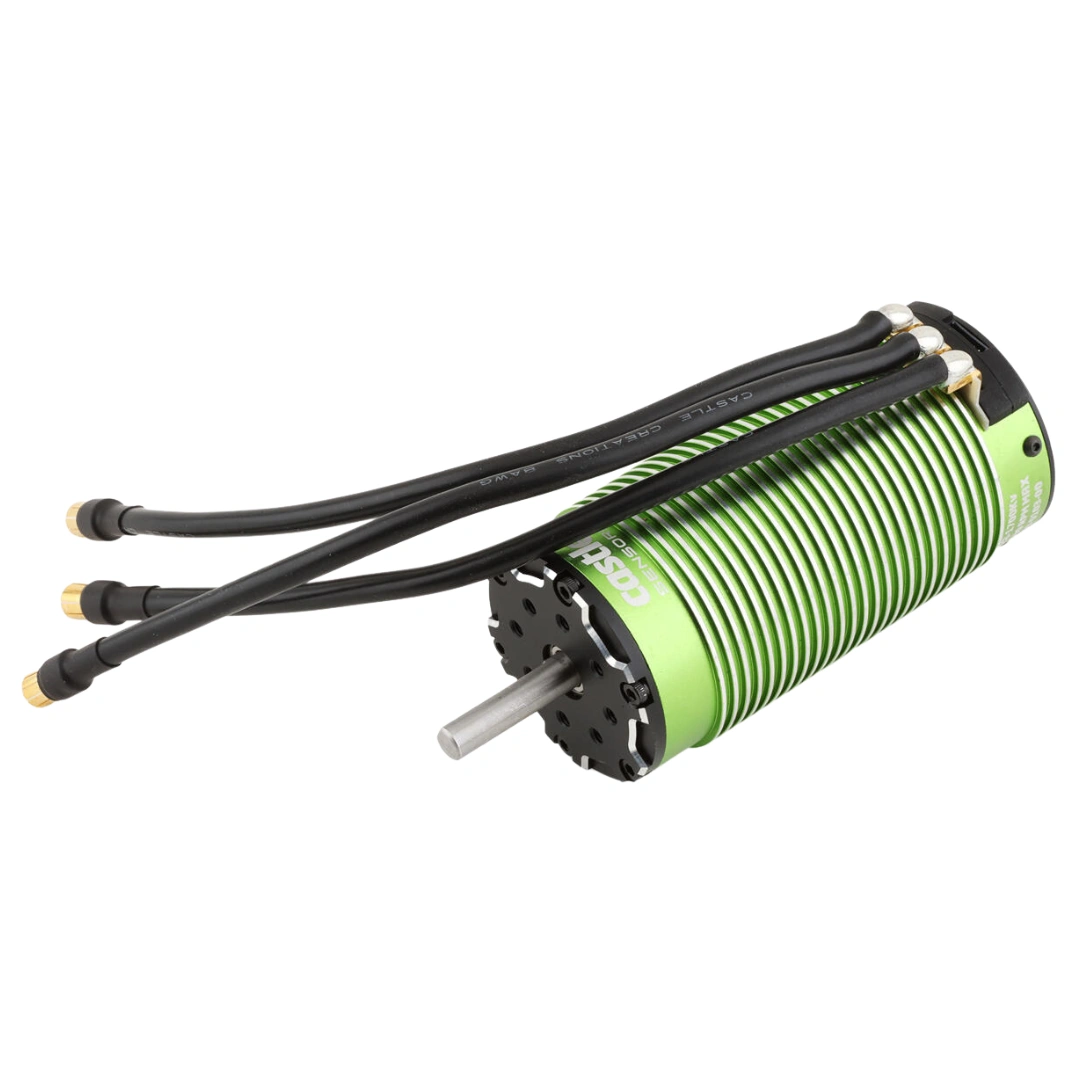

This is the Castle Creations 2028 Sensored 4-Pole Brushless Motor. Designed for those that are ready to take their extreme speed setups to the next level this high RPM version provides incredible power! With the success of the 1721-2400kv speed run motor Castle Creations went even bigger with this 2028 version. With a larger diameter and length, this 2028 motor handles more power/wattage allowing for more torque and speed potential.

Ideal for running up to 8s LiPo in 1/8 and 1/7 scale vehicles, this motor features an updated mechanical design with a stainless-steel sleeve to reinforce and strengthen the rotor for high RPM operation. Coupled to a massive 8mm stainless steel motor shaft, 8.0mm bullets and high strand, low resistance, silicone coated 8 gauge copper wire, the 2028-1700Kv will deliver massive power and maximum top end speed.

Specifications

• Input Voltage Range: 8S MAX
• Kv: 1700
• Max. RPM: 60,000
• Length: 4.4' (112.7mm)
• Diameter: 2.2' (56.3mm)
• Weight (w/wires): 44.9oz./1.25kg
• Shaft Length: 30mm
• Shaft Diameter: 8mm
• Mounting Hole Specifications: 4mm @ 30mm

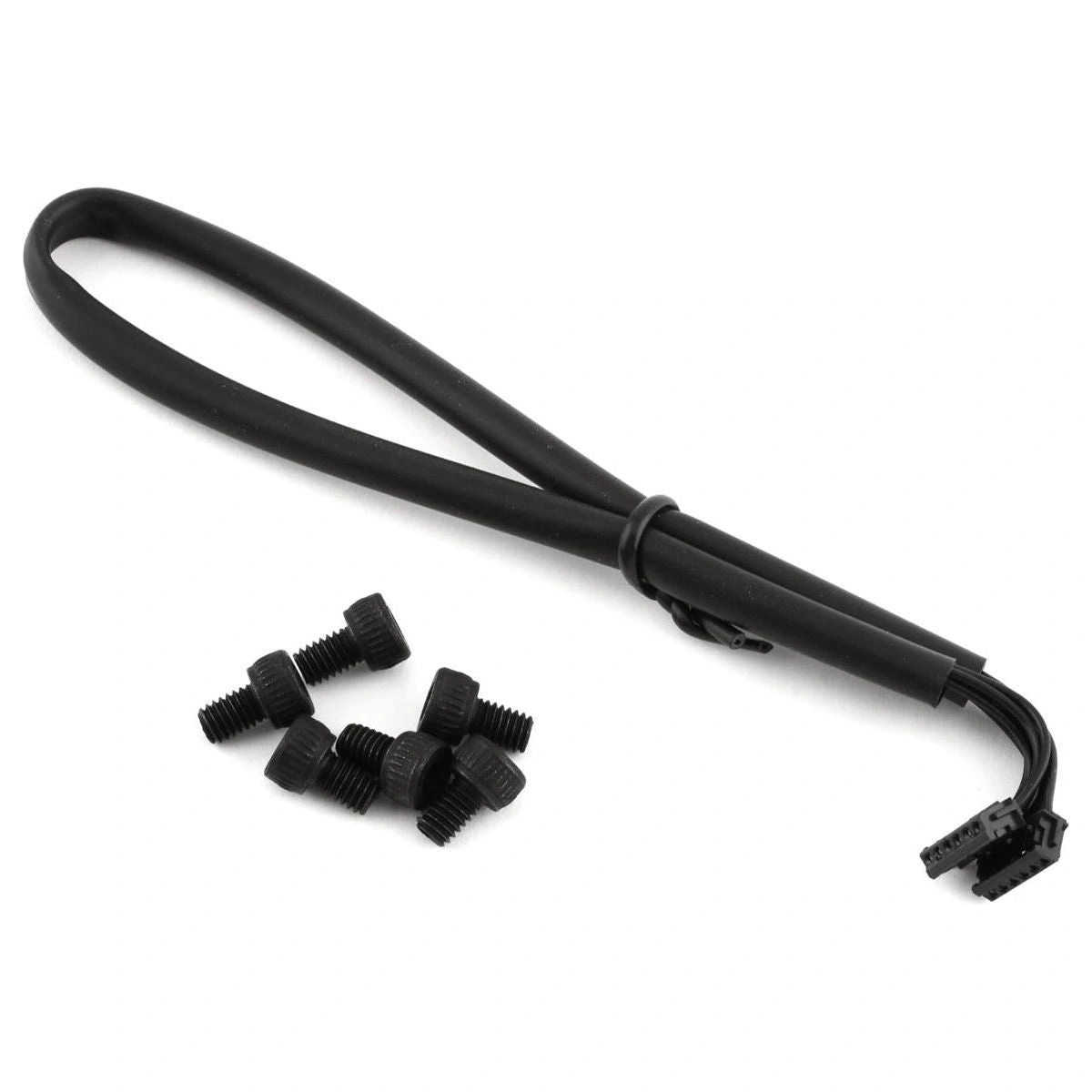

• Connectors: 8.0mm male connectors, 250mm sensor wire.
• Needed for Operation: Compatible Electronic Speed Control (ESC)
• Recommended ESC: Mamba XLX2
