Product Detail

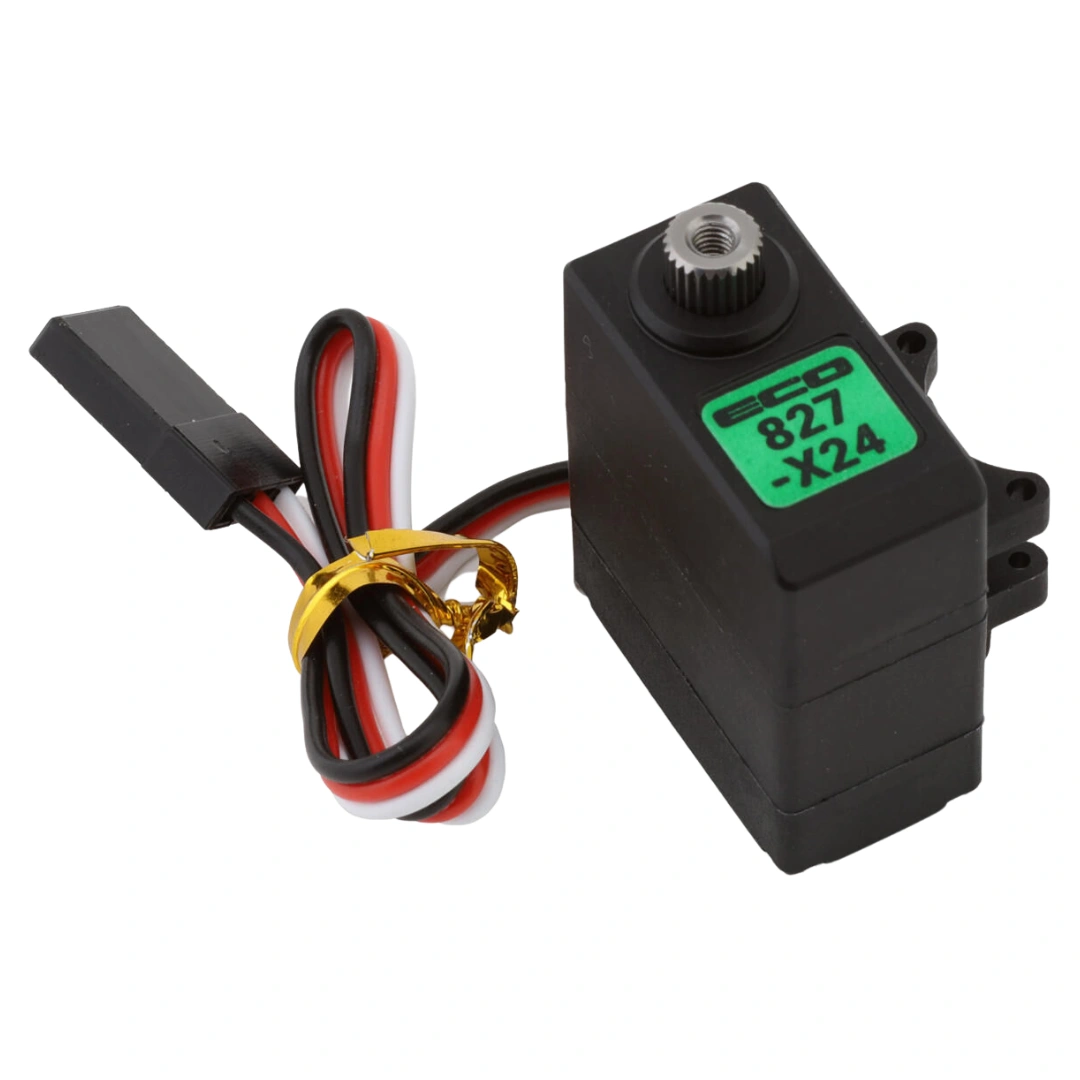

The EcoPower WP827-X24 is a high-performance waterproof micro servo built specifically for the Axial SCX24. Featuring a direct axle mount design, it eliminates the need for a separate servo mount while delivering powerful torque and quick response in a compact, rugged package.

Features

• Direct fit for Axial SCX24 with integrated axle and link mounts
• High torque output up to 62.5oz.in at 8.4V for improved steering power
• Fast response speed of 0.08 sec/60° at 8.4V
• Heavy-duty all-metal geartrain and output shaft for durability
• Fully waterproof for reliable performance in wet or muddy conditions
• Includes CNC-machined aluminium servo horn with multiple mounting options

Specifications

• Application: 1/24 and 1/18 scale vehicles
• Input Voltage: 6V–8.4V
• Speed: 0.10 sec/60° @6.0V | 0.08 sec/60° @8.4V
• Torque: 48.6oz.in (3.5Kg-CM) @6.0V | 62.5oz.in (4.5Kg-CM) @8.4V
• Motor Type: Digital coreless
• Output Shaft: Mini 25T
• Gear Material: Metal
• Dimensions: 23 x 12 x 31.75mm
• Weight: 16g

Includes

• (1) WP827-X24 Digital Micro Servo
• (1) Aluminium servo horn
• (2) Composite servo horns
